Straight Edge Polishing Machine

• Place of Origin:

   Italy

• Type:

  Polishing and Surface Finishing Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1461592

• Place of Origin:

  Italy

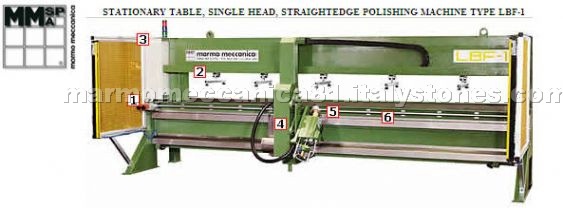

• STATIONARY TABLE, SINGLE HEAD, STRAIGHT EDGE POLISHING MACHINE TYPE LBF-1
  for round and flat edges from 1 to 10 (14) cm thickness
  - 1 moving spindle-unit, inclining from 0° to 180°, for 100-130 mm diameter wheels
  - spindle inclining system by means of levers, no maintenance requested
  - Programmer for automatic processing of working cycles
  - Initial and final limits of the longitudinal spindle run stored by means of programmer
  - Automatic spindle positioning according to thickness:processed by programmer
  - 2 sliding and adjustable stops for alignment of pieces
  - 5 pneumatic pistons for pieces locking
  - 1 supporting bar for large pieces
  - High precision, hardened sliding guides, protected by stainless steel covers
  - Longitudinal spindle-unit stroke: 3500 mm
  - Spindle translation speed adjustable by means of inverter (from 0 to 100 m/min)
  - Double rotation speed spindle, 1,5/1,8 Kw power
  - Safety barriers according to CE norms
  - Dimensions: 4900 x 1900 x 1850 (h) mm
  - Total power installed: Kw 4,0
